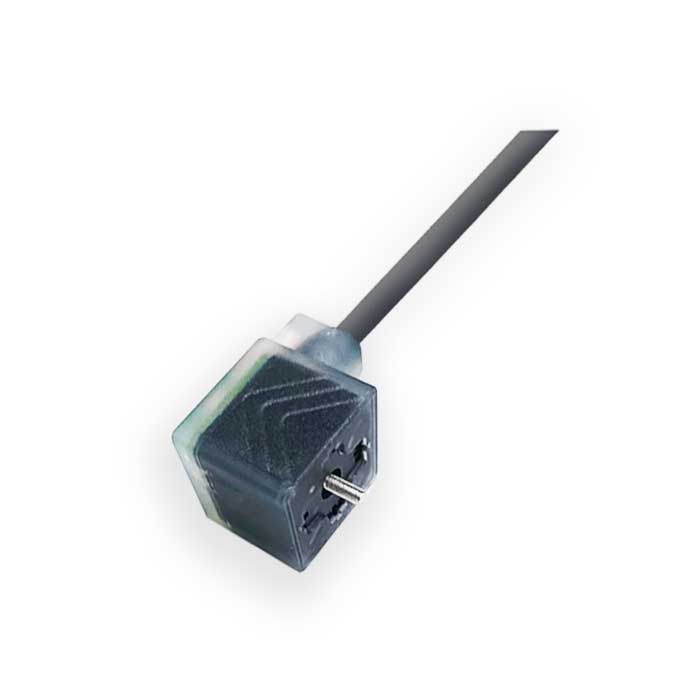

Pressure switch plug, 4Pin, single-ended pre-cast PVC non-flexible cable, grey sheath, 6VA101-XXX
  • Pressure switch plug, 4Pin, single-ended pre-cast PVC non-flexible cable, grey sheath, 6VA101-XXX
  • Pressure switch plug, 4Pin, single-ended pre-cast PVC non-flexible cable, grey sheath, 6VA101-XXX
  • Pressure switch plug, 4Pin, single-ended pre-cast PVC non-flexible cable, grey sheath, 6VA101-XXX

Pressure switch plug, 4Pin, single-ended pre-cast PVC non-flexible cable, grey sheath, 6VA101-XXX

Ordering code: 6VA101-XXX
Series: FCC PAT2-0000-10-VX8534-XXX
Pressure switch plug, 4Pin, single-ended pre-cast PVC non-flexible cable, grey sheath, 6VA101-XXX
  • Remarks: xxx=cable length, order can be customised according to the need, cable length in 0.5m increments, example: 005=0.5m, 010=1m, 015=1.5m
Parameter Table Inquiry

Related recommendations

  • Function Parameter
  • Resource Download
  • Related Video
TypeValve pressure switch plug
Pin4 Pin
Cable routing0°
Maximum supply voltage AC UB24 V
Maximum supply voltage DC UB24 V
CableCasting
Cable Colour/materialGrey/PVC fixed installation
Current rating4.0A
SuppressorNo
Number of conductors × cross-sectional area of conductors5×0.5 mm²
Protection level according to IEC 60529IP 67
Ambient temperature Ta-25...+80 °C
