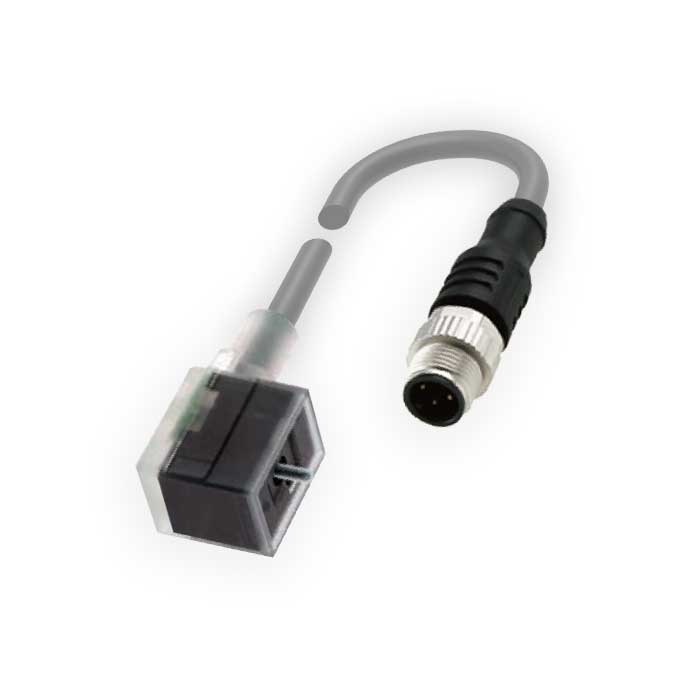

Valve plug type B, DIN, 10mm, 3Pin to M12 male straight, dual-end pre-cast PVC non-flexible cable, grey sheath, 6VB043-XXX
  • Valve plug type B, DIN, 10mm, 3Pin to M12 male straight, dual-end pre-cast PVC non-flexible cable, grey sheath, 6VB043-XXX
  • Valve plug type B, DIN, 10mm, 3Pin to M12 male straight, dual-end pre-cast PVC non-flexible cable, grey sheath, 6VB043-XXX
  • Valve plug type B, DIN, 10mm, 3Pin to M12 male straight, dual-end pre-cast PVC non-flexible cable, grey sheath, 6VB043-XXX

Valve plug type B, DIN, 10mm, 3Pin to M12 male straight, dual-end pre-cast PVC non-flexible cable, grey sheath, 6VB043-XXX

Ordering code: 6VB043-XXX
Series: FCC VB02-M413-30-VX8350-XXX
Valve plug type B, DIN, 10mm, 3Pin to M12 male straight, dual-end pre-cast PVC non-flexible cable, grey sheath, 6VB043-XXX
  • Remarks: xxx=cable length, order can be customised according to the need, cable length in 0.5m increments, example: 005=0.5m, 010=1m, 015=1.5m
Parameter Table Inquiry

Related recommendations

  • Function Parameter
  • Resource Download
  • Related Video
TypeValve plug, type B, DIN, 10mm
Plug 1/PinValve plug, 3 Pin
Plug 2M12 straight male connector
Cable routing0°
Maximum supply voltage AC UB24V
Maximum supply voltage DC UB24V
CableCasting
Cable Colour/materialGrey/PVC fixed installation
Current rating4.0A

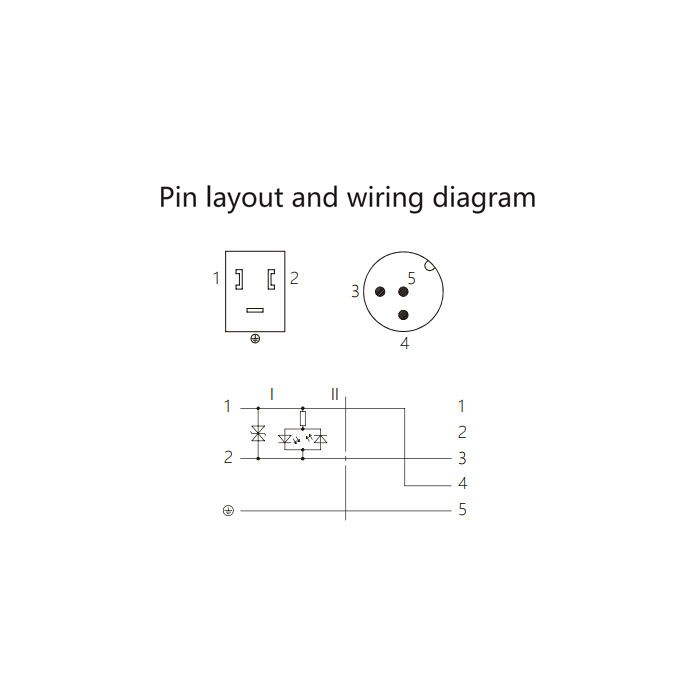

SuppressorSuppressor diode
Number of conductors × cross-sectional area of conductors3×0.5 mm²
Protection level according to IEC 60529IP 67
Ambient temperature Ta -25...+80 °C
