Valve plug type B, DIN, 10mm, 3Pin, single-end pre-cast PUR flex cable, black sheath, 6VB021-XXX
  • Valve plug type B, DIN, 10mm, 3Pin, single-end pre-cast PUR flex cable, black sheath, 6VB021-XXX
  • Valve plug type B, DIN, 10mm, 3Pin, single-end pre-cast PUR flex cable, black sheath, 6VB021-XXX
  • Valve plug type B, DIN, 10mm, 3Pin, single-end pre-cast PUR flex cable, black sheath, 6VB021-XXX

Valve plug type B, DIN, 10mm, 3Pin, single-end pre-cast PUR flex cable, black sheath, 6VB021-XXX

Ordering code: 6VB021-XXX
Series: FCC VB22-0000-10-PX0350-XXX
Valve plug type B, DIN, 10mm, 3Pin, single-end pre-cast PUR flex cable, black sheath, 6VB021-XXX
  • Remarks: xxx=cable length, order can be customised according to the need, cable length in 0.5m increments, example: 005=0.5m, 010=1m, 015=1.5m
Parameter Table Inquiry

Related recommendations

  • Function Parameter
  • Resource Download
  • Related Video

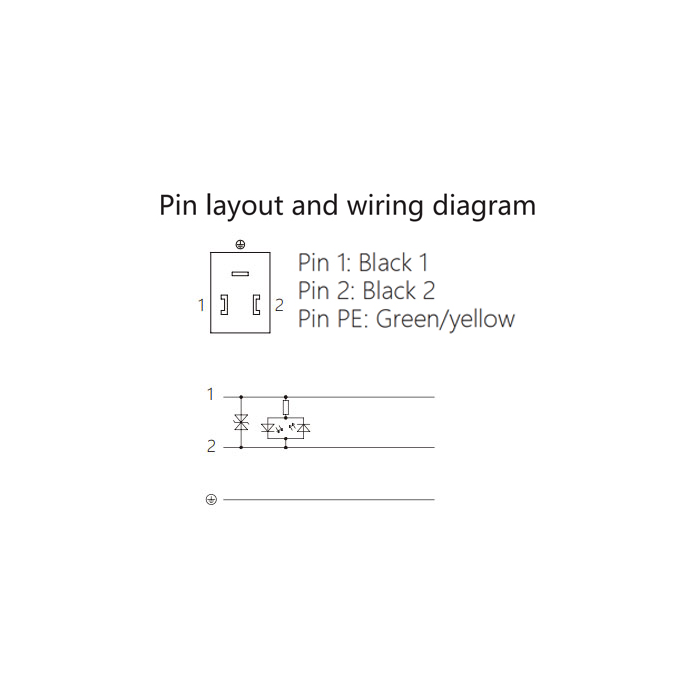

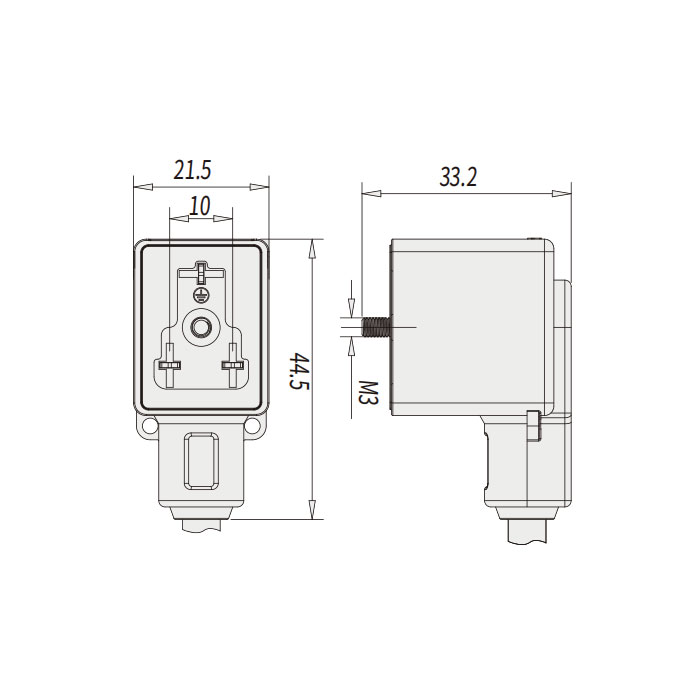

TypeValve plug, type B, DIN, 10mm
Pin3 Pin
Cable routing180°
Maximum supply voltage AC UB24V
Maximum supply voltage DC UB24V
CableCasting
Cable Colour/materialBlack/PUR flexible cable
Current rating4.0A
SuppressorSuppressor diode
Number of conductors × cross-sectional area of conductors3×0.5 mm²
Protection level according to IEC 60529IP 67
Ambient temperature Ta     -25...+80 °C
