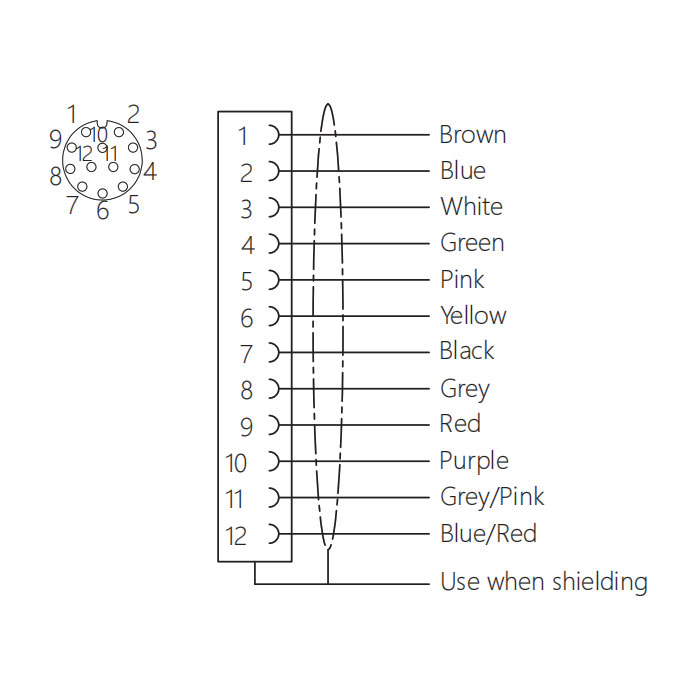

Type	M12 flanged connector、Board rear mount、Female、12 Pin、A-coded
Maximum supply voltage AC U_B	30 V
Maximum supply voltage DC U_B	30 V
Number of conductors x conductor cross-section	12×0.14mm²
Cable length	Suitable for PCB mounting
Degree of protection as per IEC 60529	IP67
Ambient temperature Ta	-25...+85 °C

M12 flange socket

M12 12Pin、Female、Flanged connector、Board rear mount、PCB installation、64SC61P

Related recommendations

M12 5Pin L-coded、Male、Flanged connector、Board rear mount、Wel

M12 5Pin L-coded、Male、Flanged connector、Board rear mount、Pre

M12 5Pin L-coded、Female、Flanged connector、Board rear mount、W

M12 5Pin L-coded、Female、Flanged connector、Board rear mount、P

M12 12Pin、Female、Flanged connector、Board rear mount、Welding

M12 12Pin、Female、Flanged connector、Board rear mount、PCB inst

M12 12Pin、Female、Flanged connector、Board rear mount、Pre cast

M12 12Pin、Male、Flanged connector、Board rear mount、Welding in

Product 3D

64SC61P (FCC M4BC-0000-1A-F00-P) -3D (STEP file)

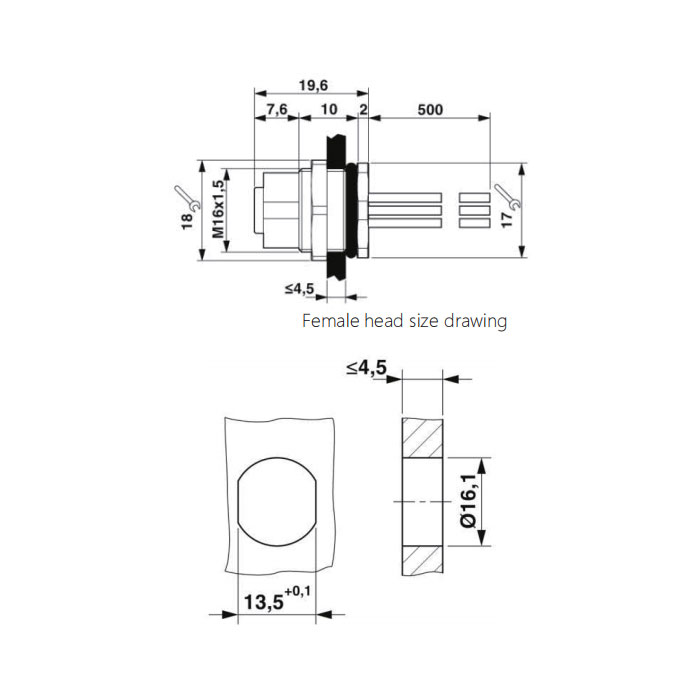

Product 2D

64SC61P (FCC M4BC-0000-1A-F00-P) -2D (DWG file)
