M12 5Pin L-coded、Female、Flanged connector、Board rear mount、Welding installation、64LB01H

Ordering code: 64LB01H

Series: FCC M4B5-0000-1L-C00-H

Suitable for on-site welding and installation
Change description: "FCC M4B5-0000-1L-D00-H" has been changed to "FCC M4B5-0000-1L-C00-H". Please refer to the new information (available for download on the official website). We apologize for any inconvenience caused!

Inquiry

Type	M12 flanged connector、Board rear mount、Female、5 Pin、L-coded
Maximum supply voltage AC U_B	48 V
Maximum supply voltage DC U_B	48 V
Rated current	4A
Number of conductors x conductor cross-section	5×1.5 mm²
Cable length	Suitable for on-site welding and installation
Degree of protection as per IEC 60529	IP67
Ambient temperature Ta	-25...+80 °C

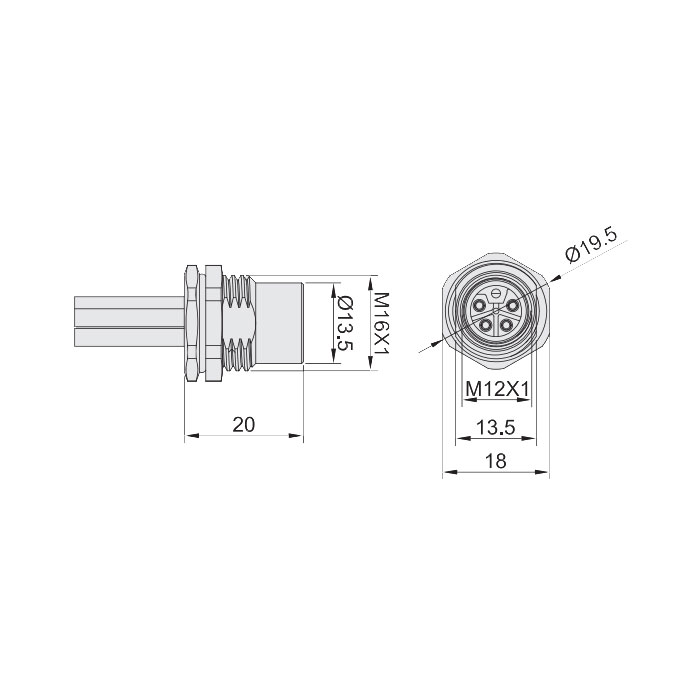

M12 flange socket
