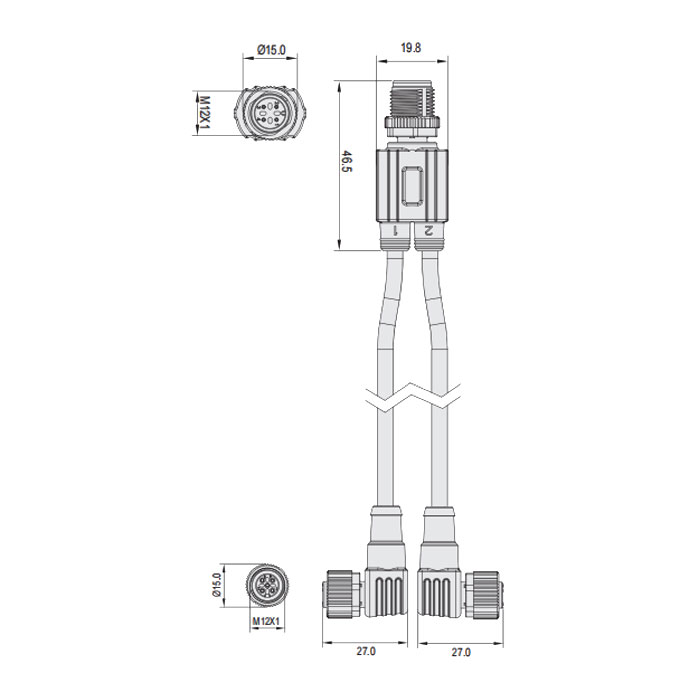

M12 4Pin male/2xM12 3Pin female 90°、Y-shaped molding PVC non-flexible cable、Gray sheath、64E443-XXX

M12 4Pin male/2xM12 3Pin female 90°、Y-shaped molding PVC non-flexible cable、Gray sheath、64E443-XXX

Ordering code: 64E443-XXX
Series: FCC S414-S425-S425-Y22-VX8334-XXX
  • Remarks: xxx = cable length, which can be customized as needed when ordering. The cable length is in increments of 0.5m, for example: 005=0.5m, 010=1m, 015=1.5m

  • Change description: "FCC S414-S425-S425-Y22-VX8434-XXX" has been changed to "FCC S414-S425-S425-Y22-VX8334-XXX". Please refer to the new information (can be downloaded from the official website). We apologize for any inconvenience!

Related recommendations

  • Function Parameter
  • Resource Download
  • Related Video

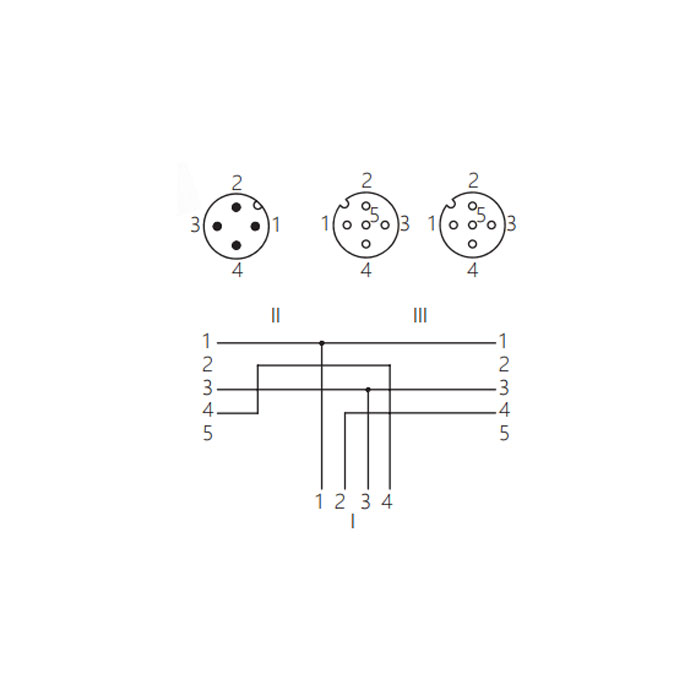

TypeM12 male 4 Pin conversion to 2×M12 right angled female 3 Pin 、A-coded
Maximum supply voltage  AC UB250 V
Maximum supply voltage  DC UB250 V
Rated current4A
CableMolding
Number of conductors x conductor  cross-section3×0.34 mm²
Cable molor/materialGrey / PVC (Fixed installation)
Degree of protection as per  IEC 60529IP 67
Ambient temperature Ta -25...+80 °C
