M8 4Pin female straight/male straight、Dual end molding PUR flexible cable、Black sheath、63D421-XXX
  • M8 4Pin female straight/male straight、Dual end molding PUR flexible cable、Black sheath、63D421-XXX
  • M8 4Pin female straight/male straight、Dual end molding PUR flexible cable、Black sheath、63D421-XXX
  • M8 4Pin female straight/male straight、Dual end molding PUR flexible cable、Black sheath、63D421-XXX

M8 4Pin female straight/male straight、Dual end molding PUR flexible cable、Black sheath、63D421-XXX

Ordering code: 63D421-XXX
Series: FCC-M314-M314-30-006-PH0450-XXX
M8 4Pin female straight/male straight、Dual end molding PUR flexible cable、Black sheath、63D421-XXX
  • Note: xxx = cable length, can be customized according to needs when ordering, cable length in 0.5m increments,  for example: 005=0.5m, 010=1m, 015=1.5m

Parameter Table Inquiry

Related recommendations

  • Function Parameter
  • Resource Download
  • Related Video

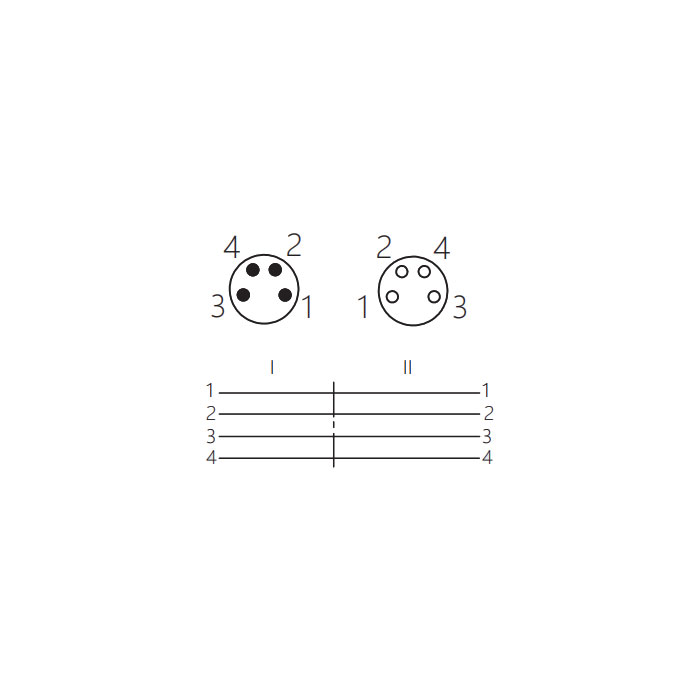

TypeM8 straight female conversion to M8 straight male、4 Pin、A-coded
Maximum supply voltage AC UB60 V
Maximum supply voltage DC UB60 V
Rated current4 A max
CableMolding
Number of conductors x conductor cross-section4×0.5 mm²
Cable color/materialBlack / PUR (Flexible cable)
Degree of protection as per IEC 60529IP 67
Ambient temperature Ta  PUR(-40°C~+80°C)


ROHS Certificate

  • Connector 2025-09-16 - RoHS Test Report

    2026-03-12   7.92MB

UL Certificate

  • M8 M12 precast wire + M12 screw connector (E545760) 2025-08-21 - UL Certificate

    2026-03-12   276.29KB

CE Certificate

  • Connectors & Distributors (64105223146704CERT_Bauart) 2024-09-04 - CE Certificate

    2026-03-13   387.84KB

Product 3D

  • 63D421-XXX (FCC M314-M314-30-006-PH0450-XXX) -3D (STEP file)

    2026-03-31   1.06MB

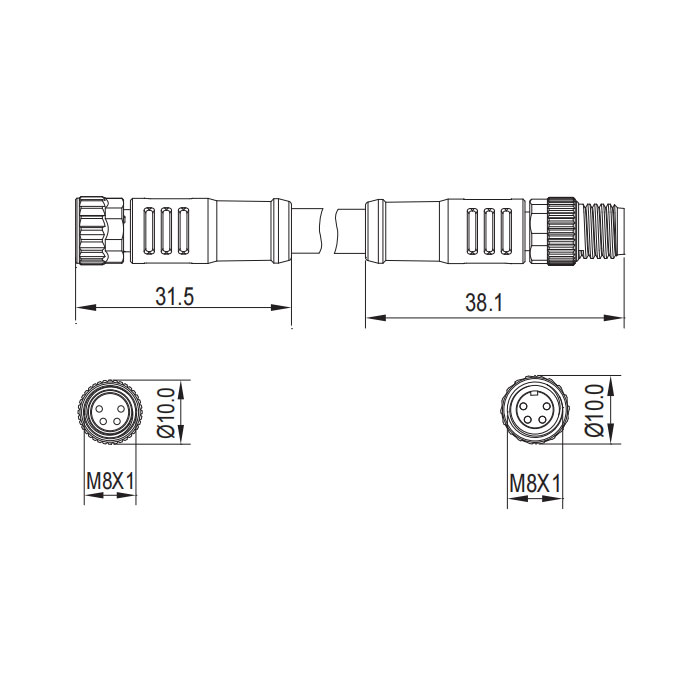

Product 2D

  • 63D421-XXX (FCC M314-M314-30-006-PH0450-XXX) -2D (DWG file)

    2026-03-31   190.91KB
