M8 8Pin female straight/male straight、Double end molding PVC non flexible cable、With shield、Grey sheath、63DA83-XXX

M8 8Pin female straight/male straight、Double end molding PVC non flexible cable、With shield、Grey sheath、63DA83-XXX

Ordering code: 63DA83-XXX
Series: FCC M318-M318-30-000-VX8814-XXX
M8 8Pin female straight/male straight、Double end molding PVC non flexible cable、With shield、Grey sheath、63DA83-XXX
  • Note: xxx = cable length, can be customized according to needs when ordering, cable length in 0.5m increments,  for example: 005=0.5m, 010=1m, 015=1.5m

  • Change description: "FCC M318-M318-30-006-VX8814-XXX" has been changed to "FCC M318-M318-30-000-VX8814-XXX". Please refer to the new information (can be downloaded from the official website). We apologize for any inconvenience!

Related recommendations

  • Function Parameter
  • Resource Download
  • Related Video

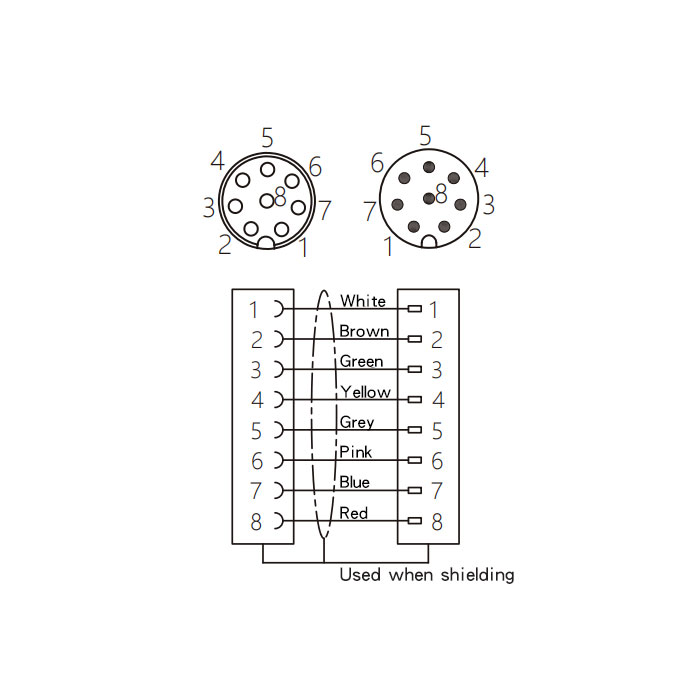

TypeM8 straight female conversion to M8 straight male、8 Pin、A-coded
Maximum supply voltage AC UB30 V
Maximum supply voltage DC UB30 V
Rated current1A
CableMolding
Number of conductors x conductor cross-section8×0.14 mm²
Cable color/materialGrey / PVC shield (Fixed installation)
Degree of protection as per IEC 60529IP 67
Ambient temperature Ta  PVC(-25°C~+80°C)


ROHS Certificate

CE Certificate

Product 3D

Product 2D
