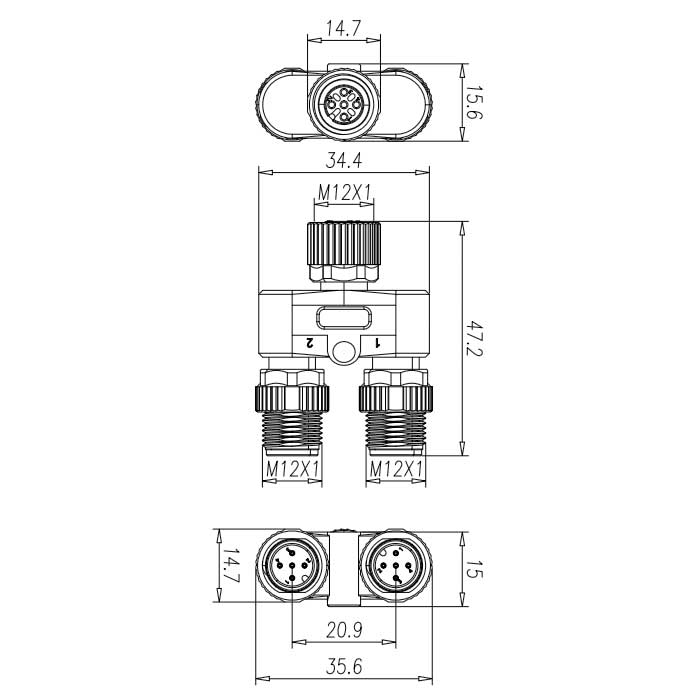

Type	Y-connector、A-coded

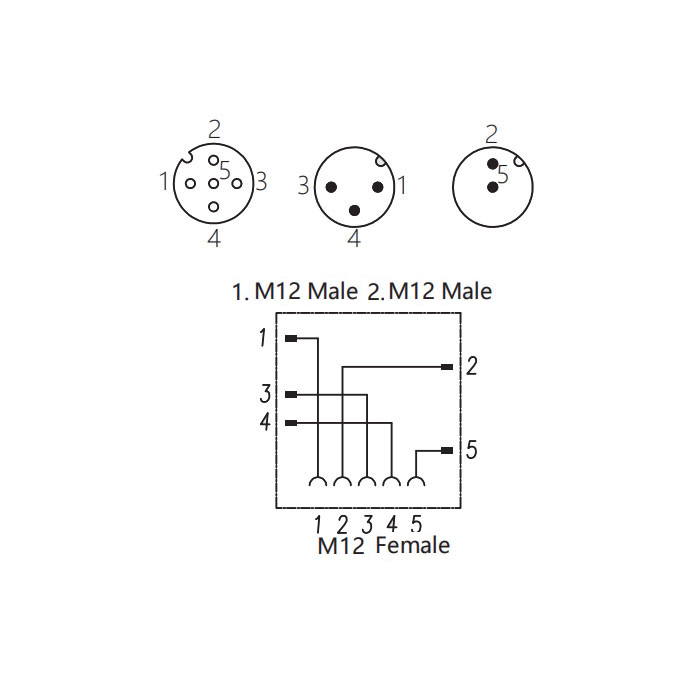

Use	M12 female 5 Pin conversion to M12 male 3 Pin and M12 male 2 Pin
Rated working voltage U_B	125 V
Rated operating current Ie	4 A
Degree of protection as per IEC 60529	IP 67
Ambient temperature Ta	-25...+85 °C
Shell material	TPU

M12 tee connector

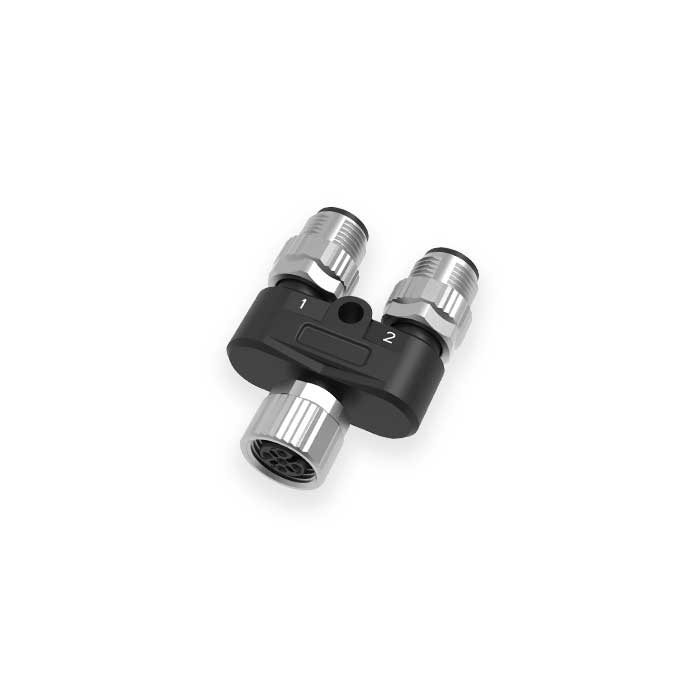

M12 5Pin female/M12 3Pin male+M12 2Pin male、Y-connector、645231
