Parts	Lower shell hole installation
Cable outlet	-
Structure	-
Material	Cast aluminum
Color	Grey
Applicable temperature range	-40°C…+85°C
Flame retardant grade	V0
Protection level	IP65
Adapter core parts	HE-024,HESH-024,HEC-024,HEE-046,HD-064,HDD-108

H48B shell

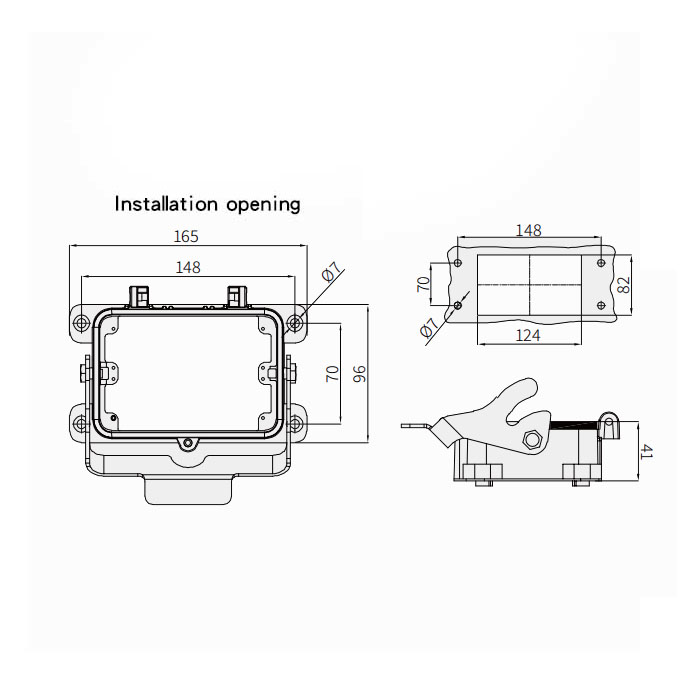

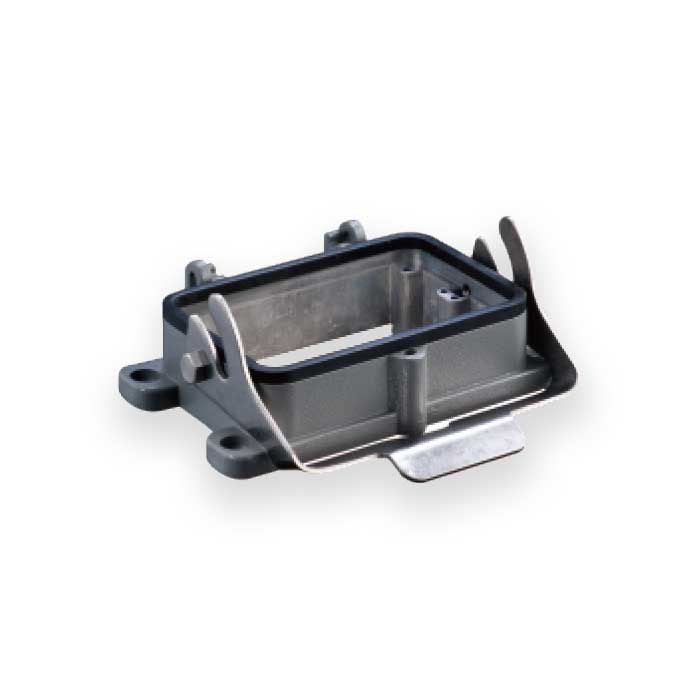

Lower shell、Open hole installation、H48B-AG、09300480301
