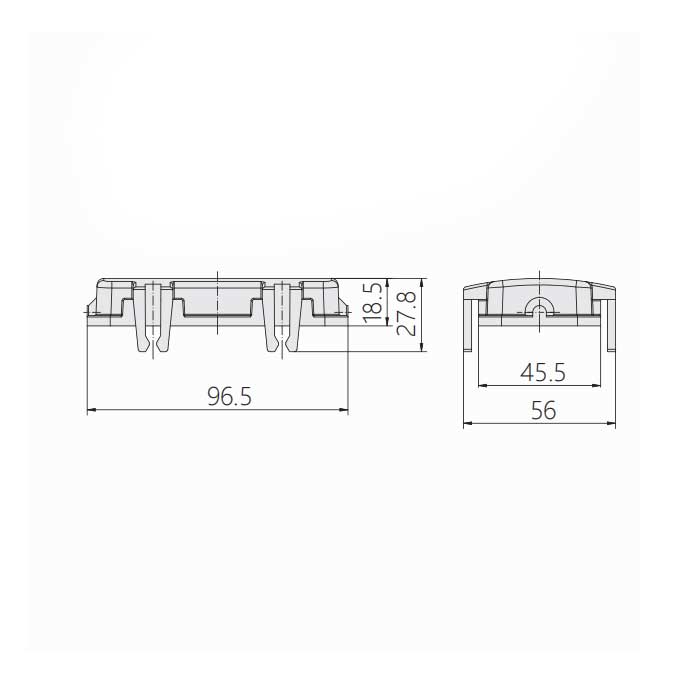

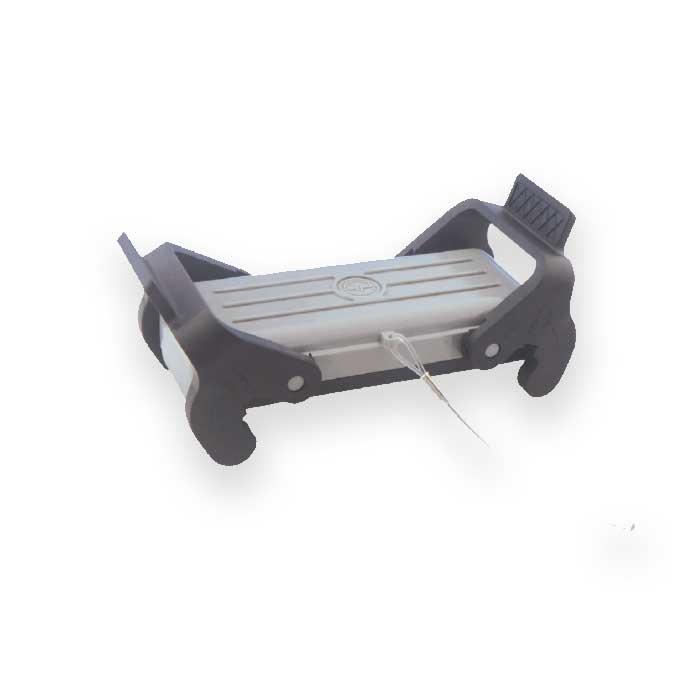

Parts	Upper case protective cover
Cable outlet	-
Structure	-
Material	Cast zinc
Color	Grey
Applicable temperature range	-40°C…+85°C
Flame retardant grade	V0
Protection level	IP65
Adapter core parts	HE-016,HESH-016,HEC-016,HVE-006+2,HEE-032,HEEE-040,HD-040,HDD-072,HSB-006,HK-4/0,HK-4/2,HK-12/2,HWK-6/6

H16B shell

Upper case protective cover、H16B-KDT、09300165422
