Type	M8 straight male、4 Pin、A-coded
Maximum supply voltage AC U_B	30 V
Maximum supply voltage DC U_B	30 V
Rated current	4A max
Cable	User-fabricated
Number of wires × wire cross-sectional area	4×0.14...0.5 mm²
Cable diameter	Maximum 6.5 mm
Connection method	Screw terminal (shielded)
Degree of protection as per IEC 60529	IP 67
Ambient temperature Ta	-40...+85 °C

M8 connector

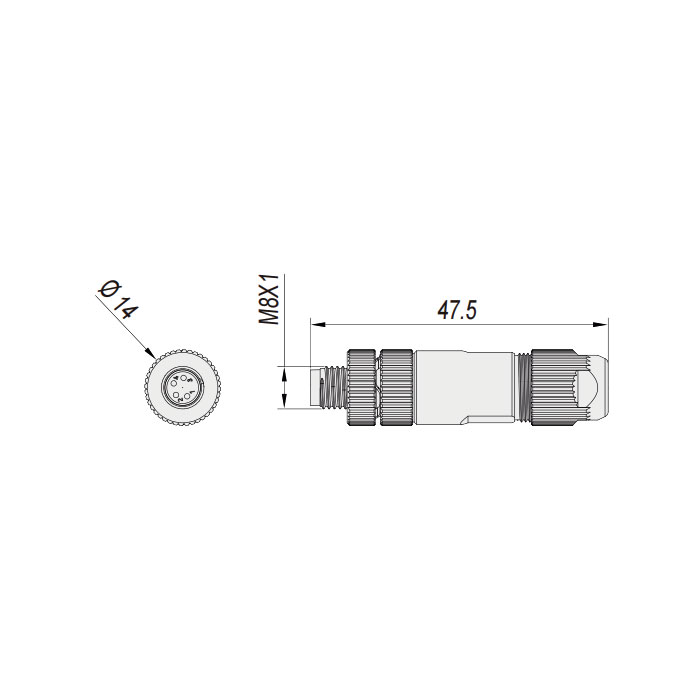

M8 4 Pin、Straight male、Screw connection、Metal shielding、63F161

Related recommendations

M8 3Pin、Female 90°、Push-in terminal、63F303

M8 3Pin、Male 90°、Push-in terminal、63F343

M8 4 Pin、Straight male、Screw connection、63F121

M8 4 Pin、female 90°、Screw connection、63F083

M8 4 Pin、Straight female、Screw connection、63F081

M8 4 Pin、Straight female、Screw connection、Metal shielding、63

M8 4 Pin、Straight male、Screw connection、Metal shielding、63F1

M8 3 Pin、Straight female、Screw connection、Metal shielding、63

ROHS Certificate

Connector 2025-09-16 - RoHS Test Report

CE Certificate

Connectors & Distributors (64105223146704CERT_Bauart) 2024-09-04 - CE Certificate

Product 3D

63F161 (FCC-M374-0000-2A-41X450) -3D (STEP file)

Product 2D

63F161 (FCC M374-0000-20-41X450) -2D (DWG file)
