| IO-Link | Equipment |
| Illustrate | Standard module |
| Type | 16×DI/DO |
| Rated working voltage | 18...30 V |
| IO-Link RUN function indicator | Green LED indicator light |
| Power start-up indication light | Green LED indicator light |
| Connection: IO-Link | M12，A-coded，male |
| Connection: I/O port | M12，A-coded，female |
| Connection: US | Via IO-Link interface |
| Connection: UA | M12，L-coded，male |
| Number of I/O ports | 8 |
| Input quantity | Maximum 16 PNP inputs |
| Output quantity | Maximum 16 PNP outputs |
| Input/output configurable | Yes |
| Maximum load current, sensor | 0.35A |
| Maximum load current, actuator | 2 A |
| Port status indicator | Yellow/red LED |
| Total current UA | 16A |
| Total current US | 1.2A |
| Degree of protection as per IEC 60529 | IP67（When connected correctly） |
| Certification/Standard Compliance | - |
| Operating temperature | -25...+70 ℃ |
| Storage temperature | -40...+85 °C |
| Installation method | 2 mounting holes |

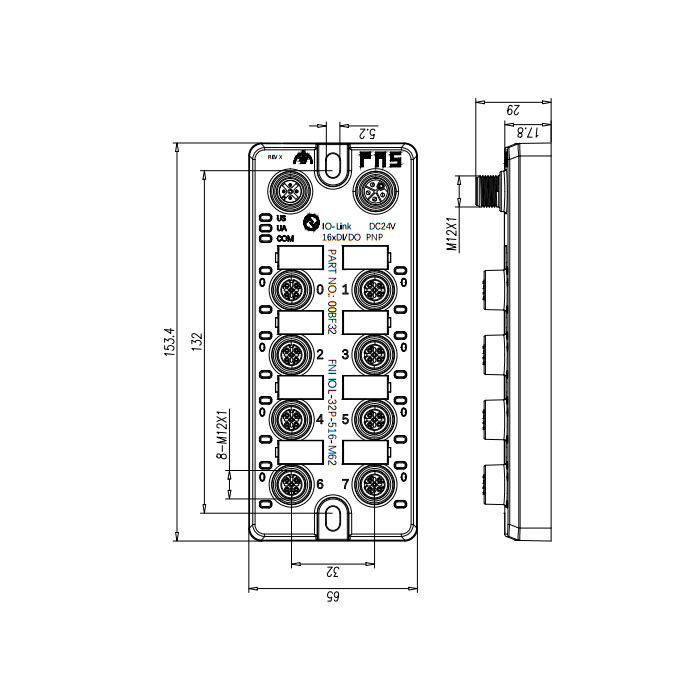

| Dimensions (length × width × height) | 153.4×65×29 mm |
| Shell material | Nickel plated Gd-Zn alloy |
| Remark | - |
lO-Link 1.1
|
| Max. cycle time | 5ms |
| IO-Link tackled data length | 8 input bytes/2 outputs bytes |
| Indicator light communication | Green LED indicator light |
| Indicator light error | Red LED indicator light |
