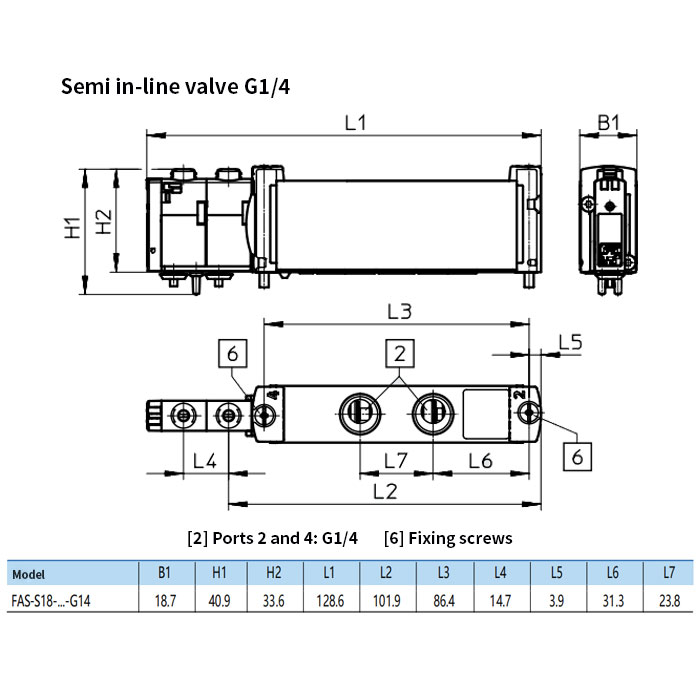

| Type | Semi in-line valve G1/4 | ||||||||||||
| Valve function | 5/3-way valve, mid-closed | ||||||||||||
| Pilot air source | External pilot | ||||||||||||
| Main technical parameters | |||||||||||||
| Valve function | 3/2-way valve | 5/2-way valve | 5/3-way valve | ||||||||||
| Normal position | C1) | U2) | H4) | C1) | U2) | H4) | - | - | - | C1) | U2) | E3) | |
| Steady state position | Single solenoid | Double solenoid | Single solenoid | ||||||||||
| Pneumatic reset | Yes | No | Yes5) | - | No | - | |||||||
| Spring return | No | Yes | Yes5) | - | Yes | Yes | |||||||
| Working under negative pressure, use air port 1 | No | With external pilot air source | |||||||||||
| Structural features | Piston slide valve | ||||||||||||
| Sealing principle | Soft seal | ||||||||||||
| Drive mode | Electric drive | ||||||||||||
| Control method | Pilot control | ||||||||||||
| Pilot air source | External pilot | ||||||||||||
| Exhaust function | Can be throttled | ||||||||||||
| Hand control device | Push-button/locking or locking | ||||||||||||
| Installation method | On the manifold board | ||||||||||||
| Signal status indication | LED | ||||||||||||
| Flow, manifold plate G1/4 [l/min] | 950 | 900 | 1150 | 1200 | 1150 | 1000 | |||||||
| Specification [mm] | 18 | ||||||||||||
| Interface 1, 3, 5, 12/14, 82/84 | On the manifold board | ||||||||||||
| Interface 2, 4 | G1/4 | ||||||||||||
| Product weight [g] | 145 | 147 | 138 | 145 | 138 | 140 | |||||||
| Corrosion resistance grade CRC | 2 | ||||||||||||
1) C=Normally closed/mid-closed 2) U=Normally open/mid-position pressurised 3) E=Mid-position exhausted 4) H=2x 3/2-way valve integrated in one housing with 1x normally closed and 1x normally open 5) Hybrid reset method | |||||||||||||
| Working and environmental conditions | |||||||||||||
| Valve function | 3/2-way valve1） | 3/2-way valve2） | 5/2-way valve3） | 5/2-way valve | 5/2-way valve2） | 5/3-way valve | |||||||
| Working medium | Compressed air according to ISO 8573-1:2010 [7:4:4] | ||||||||||||
| Pilot medium | Compressed air according to ISO 8573-1:2010 [7:4:4] | ||||||||||||
| Notes on working/pilot media | Can be operated with lubricating media (lubricating media must always be used in the future) | ||||||||||||
| Work pressure: Internal pilot [MPa] | 0.15…0.8 | 0.2…0.8 | 0.15…0.8 | 0.3…0.8 | |||||||||
| Work pressure: Internal pilot [bar] | 1.5…8 | 2...8 | 1.5...8 | 3...8 | |||||||||
| Work pressure: External pilot [MPa] | 0.15…1 | –0.09…1 | –0.09…0.8 | –0.09…1 | |||||||||
| Work pressure: External pilot [bar] | 1.5…10 | –0.9…10 | –0.9…8 | –0.9…10 | |||||||||
| Pilot pressure [MPa] | 0.15…0.8 | 0.2…0.8 | 0.15...0.8 | 0.3…0.8 | |||||||||
| Pilot pressure [bar] | 1.5 … 8 | 2...8 | 1.5...8 | 3…8 | |||||||||
| Ambient temperature [°C] | –5…+60 | ||||||||||||
| Medium temperature [°C] | –5…+60 | ||||||||||||
| Standard for paint wetting defect substances | VDMA24364-B1/B2-L | ||||||||||||
1) Pneumatic reset 2) Spring return 3) Hybrid reset, pneumatic reset / spring return | |||||||||||||
| Electrical parameters | |||||||||||||
| Working voltage [VDC] | 24 ±10% | ||||||||||||
| Power consumption [W] | 1 | ||||||||||||
| Duty cycle [%] | 100 | ||||||||||||
| Maximum switching frequency [Hz] | 3 | ||||||||||||
| Protection class according to EN 605291） | Single valve | IP65，IP67 | |||||||||||
| Valve island | IP40，IP67/IP65 | ||||||||||||
| 1) Depends on selected configuration | |||||||||||||
| Valve switching time | |||||||||||||
| Valve function | 3/2-way valve1） | 3/2-way valve2） | 5/2-way valve3） | 5/2-way valve | 5/2-way valve2） | 5/3-way valve | |||||||
| Switching time, on [ms] | 15 | 25 | 20 | - | 13 | 20 | |||||||
| Switching time, off [ms] | 37 | 33 | 35 | - | 50 | 68 | |||||||
| Switching time, switching [ms] | - | - | 15 | - | 35 | ||||||||
1) Pneumatic reset 2) Spring return 3) Hybrid reset, pneumatic reset/spring return | |||||||||||||
