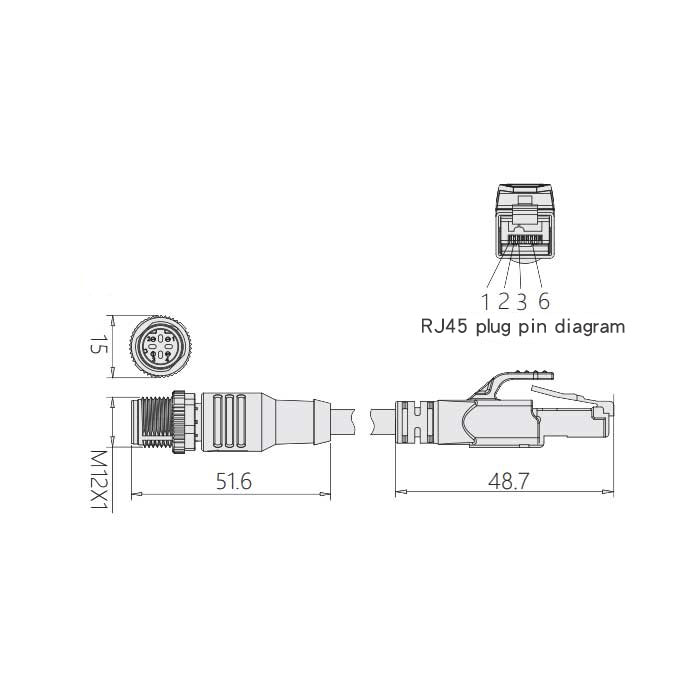

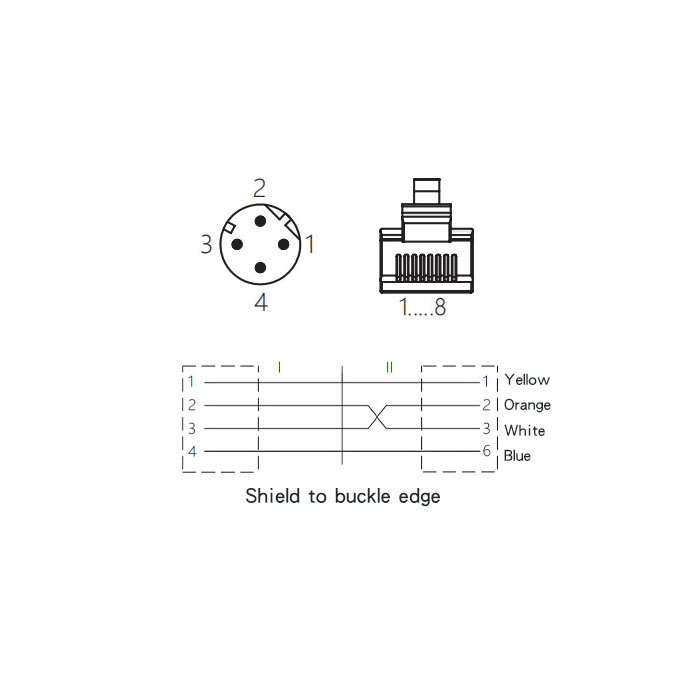

M12 4Pin D-coded male straight/RJ45、Dual end molding PVC non-flexible cable、With shielding、Yellow sheath、0C4168-XXX
  • M12 4Pin D-coded male straight/RJ45、Dual end molding PVC non-flexible cable、With shielding、Yellow sheath、0C4168-XXX
  • M12 4Pin D-coded male straight/RJ45、Dual end molding PVC non-flexible cable、With shielding、Yellow sheath、0C4168-XXX
  • M12 4Pin D-coded male straight/RJ45、Dual end molding PVC non-flexible cable、With shielding、Yellow sheath、0C4168-XXX

M12 4Pin D-coded male straight/RJ45、Dual end molding PVC non-flexible cable、With shielding、Yellow sheath、0C4168-XXX

Ordering code: 0C4168-XXX
Series: FCC M414-E814-5D-042-VXYPNA-XXX
  • Remarks: xxx = cable length, which can be customized as needed when ordering. The cable length is in increments of 0.5m, for example: 005=0.5m, 010=1m, 015=1.5m

  • Change description: "FCC-M414-E834-5D-042-VXYPNA-XXX" has been changed to "FCC M414-E814-5D-042-VXYPNA-XXX". Please refer to the new information (can be downloaded from the official website). We apologize for any inconvenience!

Parameter Table Inquiry

Related recommendations

  • Function Parameter
  • Resource Download
  • Related Video
TypeM12 straight male (4 Pin、D-coded) conversion to RJ45
Rated working voltage AC UB60 V
Rated working voltage DC UB60 V
Number of conductors x conductor cross-section4×22 AWG
Cable color/materialYellow / PVC shield (Fixed installation)
Degree of protection as per IEC 60529IP 67/IP 20
Ambient temperature Ta-25...+80 °C
