| IO-Link | Device |
| Type | 8 AI, thermocouple TCJ, Type J,K,L,B,E,N,R,H,T,U (default type K) |
| Rated working voltage | 18...30 V |
| IO-Link RUN (Operational) Status Indicator | Green LED indicator light |
| Power start-up indication light | Green LED indicator light |
| Connection: IO-Link | M12，A-coded，male |
| Connection: I/O port | M12，A-coded，female |
| Number of I/O ports | 8 |
| Input/output quantity | - |
| Analog port resolution | 24- Bit |
| Maximum load current, actuator | - |
| Port status indicator | Yellow/red LED |
| Total current US | < 1.2A |
| Degree of protection as per IEC 60529 | IP67（When connected correctly） |
| Certification/Compliance Standards | CE |
| Operating temperature | -25...+70 ℃ |
| Storage temperature | -40...+85 °C |
| Weight | About 176 g |
| Installation method | 2 mounting holes |

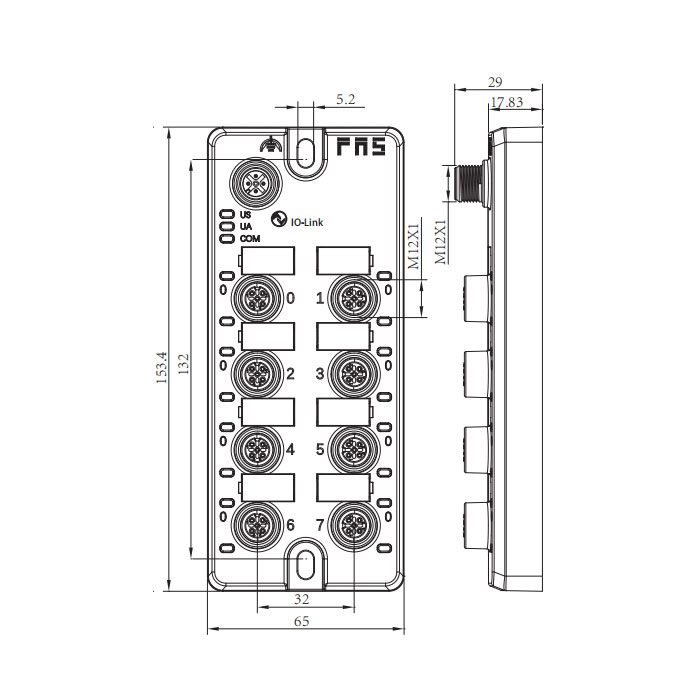

| Dimension (L*W*H) | 153.4×65×29 mm |
| Shell material | Nickel plated Gd-Zn alloy |
| IO-Link |
| lO-Link port number | 1×Device |
| Input interface | COM 2（2 wires) |
| IO-Link tackled data length | 16 input bytes |
| Indicator light communication | Yellow LED indicator light |
| Indicator light error | Red LED indicator light |
