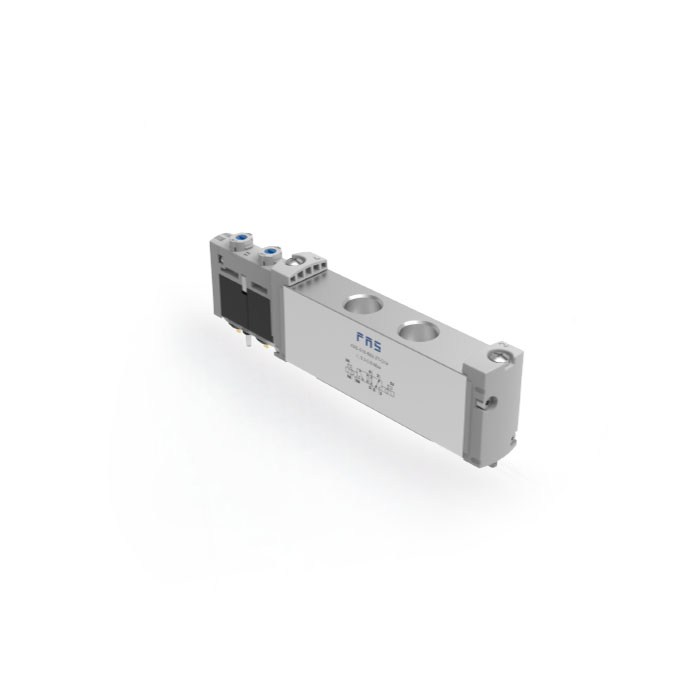

Main technical parameters
| Valve function | 4V1 | 4V2 | 4V3 |
| Reset method: air reset | Yes | ||
| Reset method: mechanical spring reset | Yes | ||
| Air port 1 vacuum operation | When using external pilot | ||
| Design | Piston slide valve | ||
| Sealing principle | Soft | ||
| Drive mode | Electric | ||
| Control method | Pilot | ||
| Pilot air source | External | ||
| Exhaust function | With flow control | ||
| Hand control device | Optional non-locking | ||
| Installation method | Installed on the manifold board | ||
| Installation location | Arbitrary | ||
| Switch position display | LED | ||
| Air port 1,3,5,12/14,82/84 | On the road board | ||
| Air port 2,4 | G¼ | ||
| Product weight [g] | 175 | 320 | 400 |
| Working and environmental conditions | |||
| Valve function | 20 | 10 | 30 |
| Working medium | Compressed air according to ISO 8573-1:2010 [7:4:4] | ||
| Pilot medium | Compressed air according to ISO 8573-1:2010 [7:4:4] | ||
| Working medium/pilot medium description | Can be lubricated (must always be lubricated once used) | ||
| Work pressure Internal pilot [bar] | 1.5 … 8 | 1.5 … 8 | 3 … 8 |
| Work pressure External pilot [bar] | -0.9 … 10 | -0.9 … 8 | -0.9 … 10 |
| Pilot pressure4) [bar] | 1.5 … 8 | 3 … 8 | 3 … 8 |
| Ambient temperature [°C] | –5 … +60 | ||
| Medium temperature [°C] | –5 … +60 | ||
| Electrical parameters | |||
| Electrical connection | Via E-box | ||
| Working voltage [V DC] | 24 ±10% | ||
| Power consumption [W] | 1 | ||
| Continuous power rate ED [%] | 100 | ||
| Maximum switching frequency [Hz] | 3 | ||
| Degree of protection according to EN 60529 | IP67 | ||
| Valve switching time | |||
| Valve function | 20 | 10 | 30 |
| Switching time on [ms] | - | 13 | 20 |
| Switch time off [ms] | - | 50 | 57 |
| Conversion time [ms] | 15 | - | 31 |
