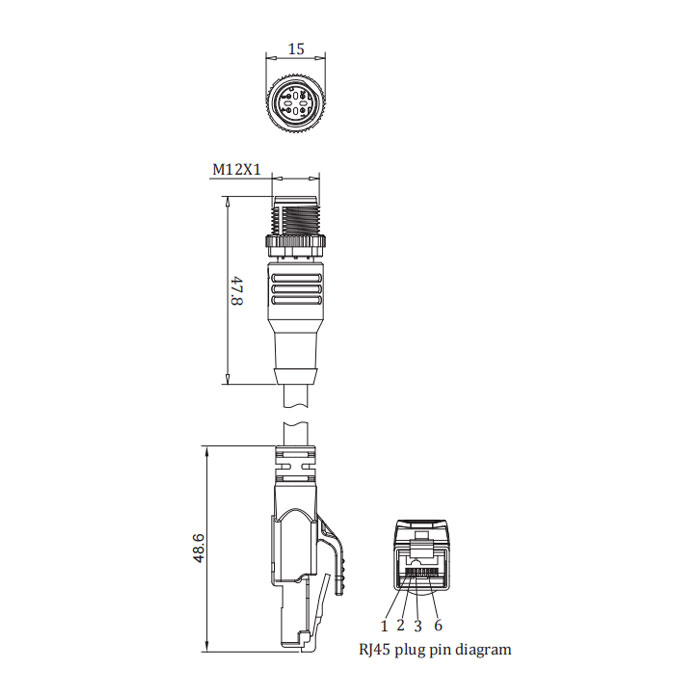

M12 4Pin male (D-coded)/RJ45 male、Double end molding PVC shield non flexible cable、EtherCat network cable、Green sheath、0C3181-XXX
  • M12 4Pin male (D-coded)/RJ45 male、Double end molding PVC shield non flexible cable、EtherCat network cable、Green sheath、0C3181-XXX
  • M12 4Pin male (D-coded)/RJ45 male、Double end molding PVC shield non flexible cable、EtherCat network cable、Green sheath、0C3181-XXX
  • M12 4Pin male (D-coded)/RJ45 male、Double end molding PVC shield non flexible cable、EtherCat network cable、Green sheath、0C3181-XXX

M12 4Pin male (D-coded)/RJ45 male、Double end molding PVC shield non flexible cable、EtherCat network cable、Green sheath、0C3181-XXX

Ordering code: 0C3181-XXX
Series: FCC-M414-E834-5D-042-VXG04C-XXX
  • Note: xxx = cable length, can be customized according to needs when ordering, cable length in 0.5m increments,  for example: 005=0.5m, 010=1m, 015=1.5m
Inquiry

Related recommendations

  • Function Parameter
  • Resource Download
  • Related Video

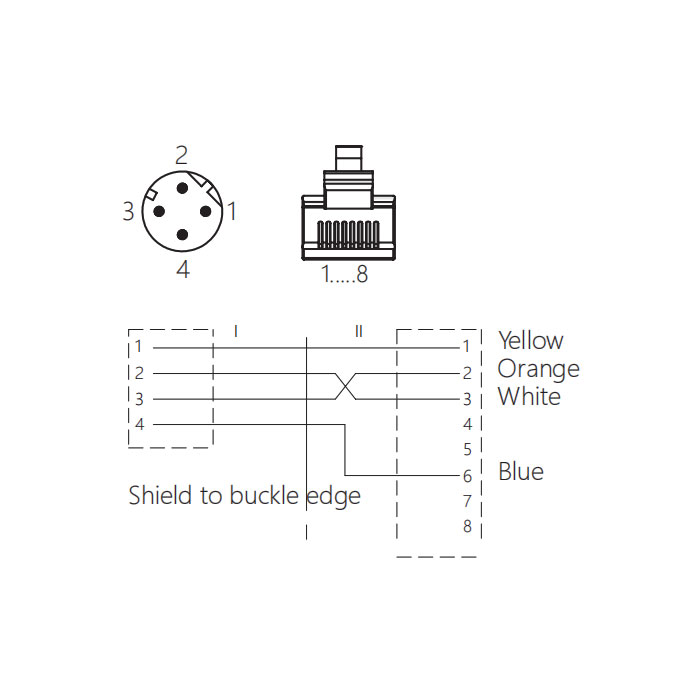

TypeM12 straight male (4 Pin) conversion to RJ45 male
CodingD-coded/RJ45
Rated working voltage UB60 V AC/DC
Cable color/materialGreen/PVC（shield）
Degree of protection as per IEC 60529IP67/IP20
Ambient temperature Ta-25...+80 °C
