Type	M8 straight female、3 Pin、A-coded
Maximum supply voltage AC U_B	60 V
Maximum supply voltage DC U_B	60 V
Rated current	4A max
Cable	User-fabricated
Number of wires × wire cross-sectional area	3×0.14...0.5 mm²
Cable diameter	Ø3.5 - 5 mm
Connection method	Screw terminal
Degree of protection as per IEC 60529	IP 67
Ambient temperature Ta	-40...+85 °C

Appendix

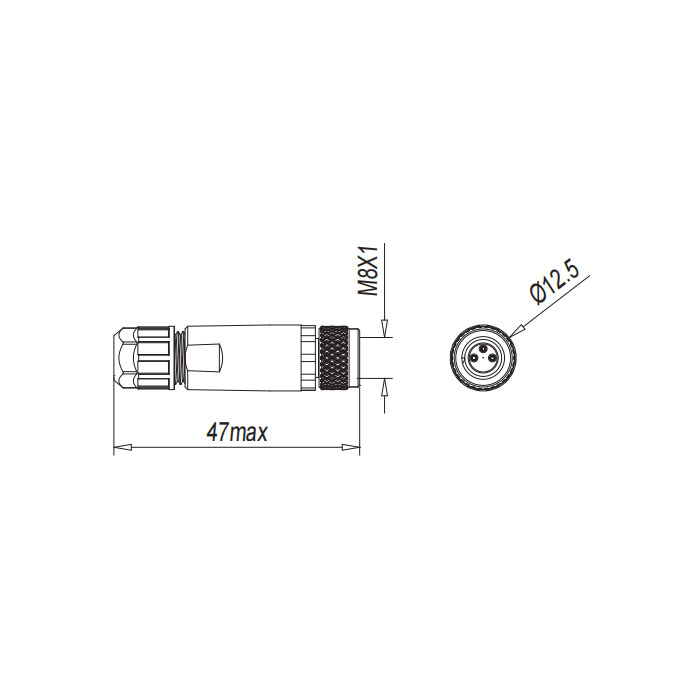

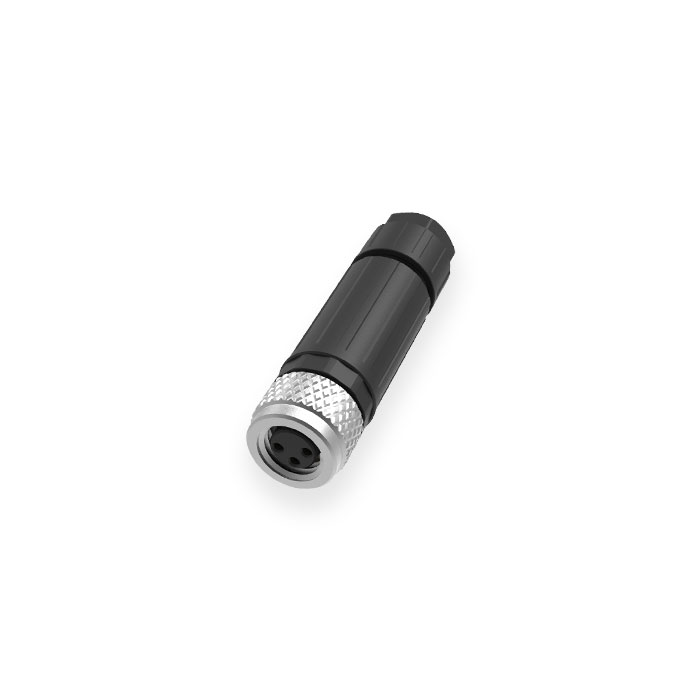

M8 3 Pin、Straight type female、Screw connection、63F001

Related recommendations

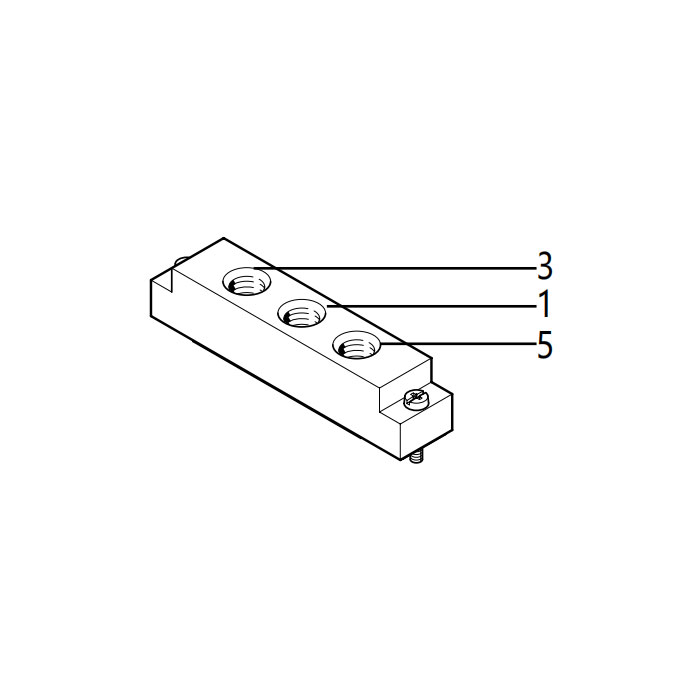

Air source expansion adapter block、FVG-L1-14-P3A4-G18、156999

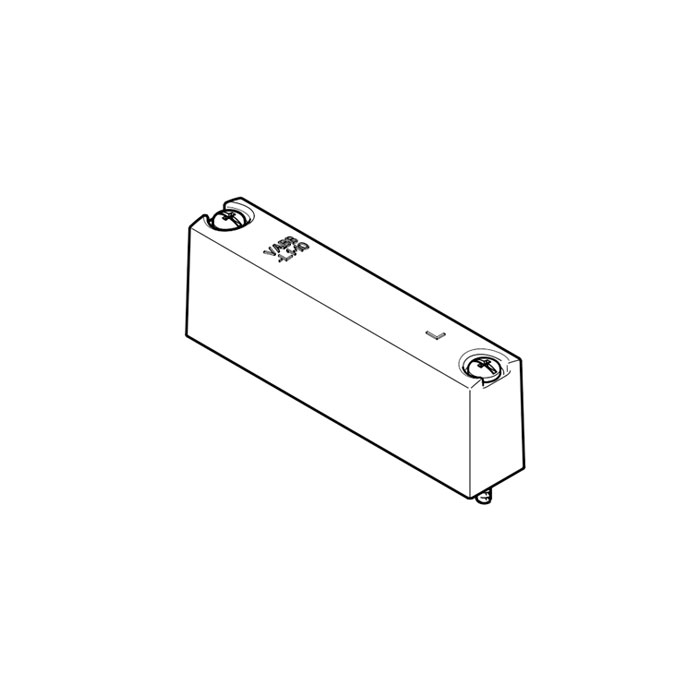

Cover plate、Used to seal empty valve positions on the manif

Isolator、Used to create pressure zones、VABD-10-B、569996

Semi stainless steel right angle external thread G1/8、Trache

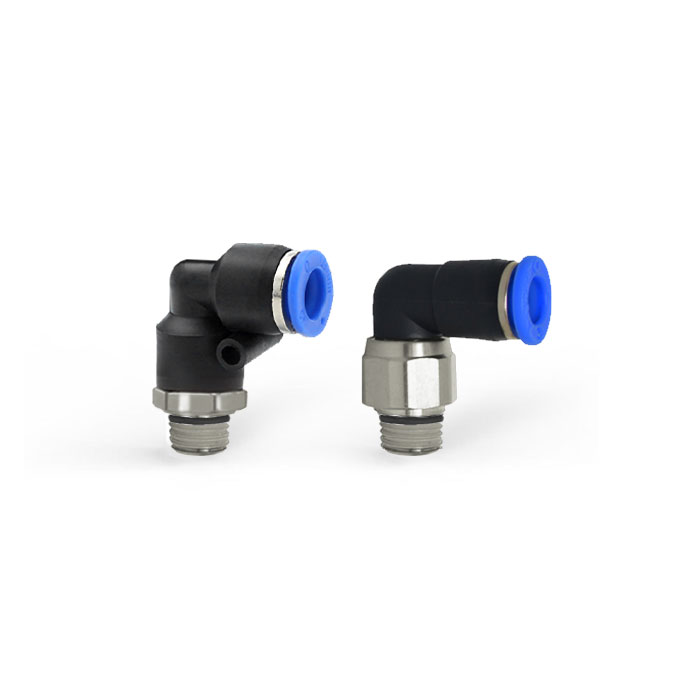

Right angle external thread G1/8、Tracheal connector (black/w

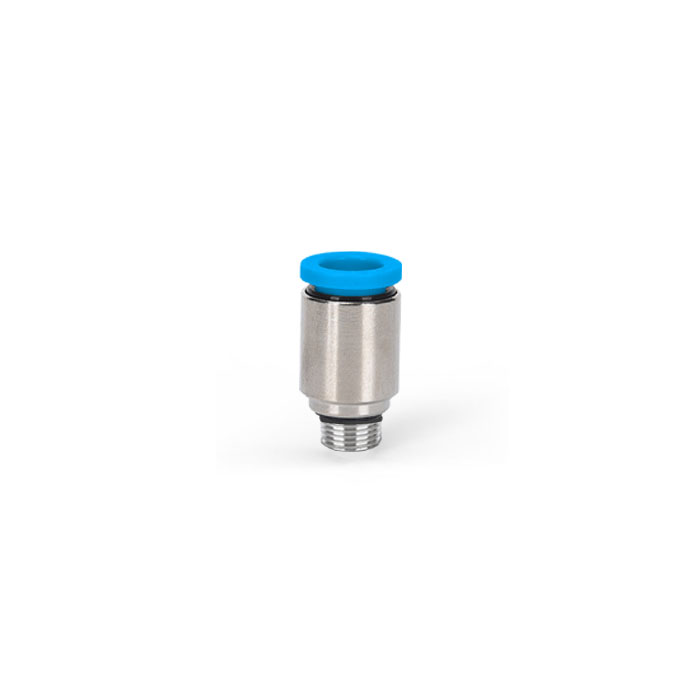

Tracheal connector (blue/white)、Semi-stainless steel circula

Tracheal connector (blue/white)、G1/8 thread、For trachea Φ10

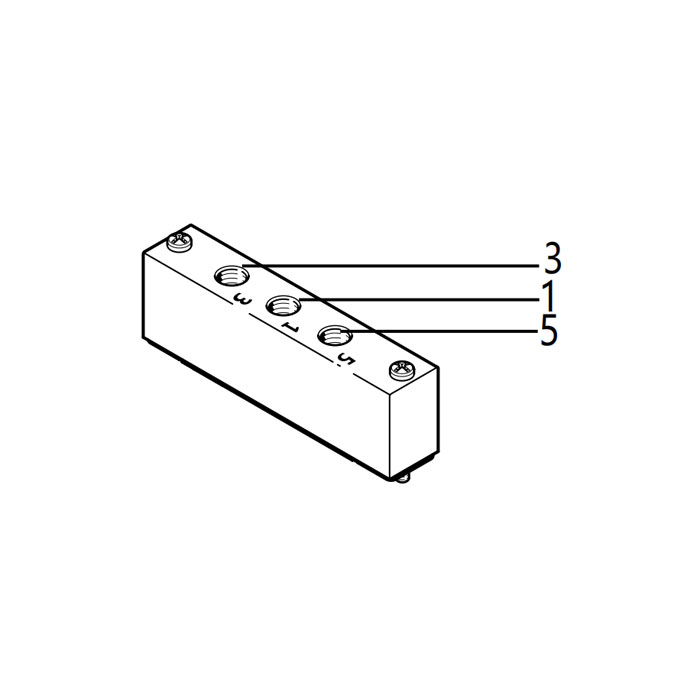

Air source expansion adapter block、FVG-L1-10-P3A4-M5、1569992
