Home > Product > Connection Tech > M12 connectors&cables > M12 single ended molding cable

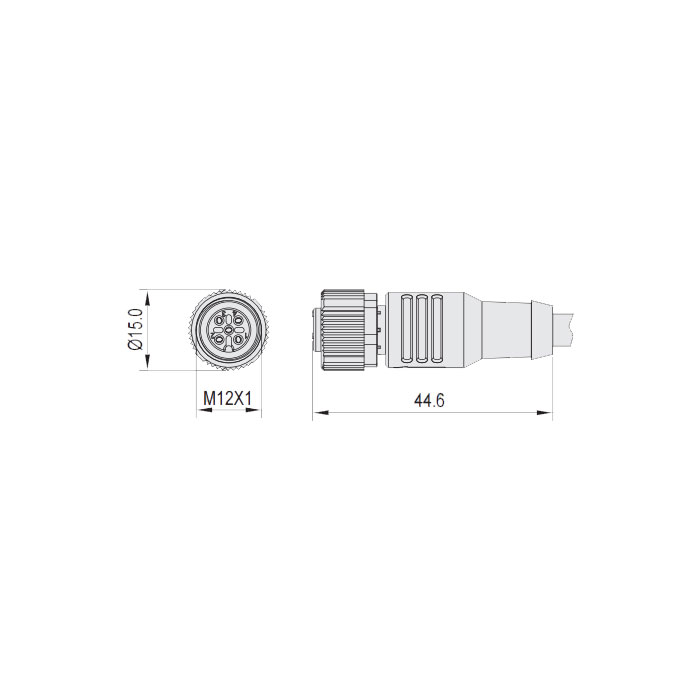

M12 4Pin、Female straight、With LED light、Single ended precast cable、Welding slag resistant PUR material、Orange sheath、64T313-XXX
  • M12 4Pin、Female straight、With LED light、Single ended precast cable、Welding slag resistant PUR material、Orange sheath、64T313-XXX
  • M12 4Pin、Female straight、With LED light、Single ended precast cable、Welding slag resistant PUR material、Orange sheath、64T313-XXX
  • M12 4Pin、Female straight、With LED light、Single ended precast cable、Welding slag resistant PUR material、Orange sheath、64T313-XXX

M12 4Pin、Female straight、With LED light、Single ended precast cable、Welding slag resistant PUR material、Orange sheath、64T313-XXX

Ordering code: 64T313-XXX
Series: FCC M415-0000-1A-010-PW4434-XXX
  • Note: xxx = cable length, can be customized according to needs when ordering, cable length in 0.5m increments,  for example: 005=0.5m, 010=1m, 015=1.5m
Inquiry

Related recommendations

  • Function Parameter
  • Resource Download
  • Related Video
TypeM12 straight female、3 Pin、With LED light、A-coded
Maximum supply voltage DC UB30 V
Maximum current4A
CableMolding
Number of conductors x conductor cross-section4×0.34 mm²
Cable color/materialOrange / PUR (Flexible cable)
Degree of protection as per IEC 60529IP 67
Ambient temperature Ta-25...+105 °C
