M12 5Pin、Male 90°、Single ended precast cable、Welding slag resistant PUR material、Yellow sheath、64T561-XXX
  • M12 5Pin、Male 90°、Single ended precast cable、Welding slag resistant PUR material、Yellow sheath、64T561-XXX
  • M12 5Pin、Male 90°、Single ended precast cable、Welding slag resistant PUR material、Yellow sheath、64T561-XXX
  • M12 5Pin、Male 90°、Single ended precast cable、Welding slag resistant PUR material、Yellow sheath、64T561-XXX

M12 5Pin、Male 90°、Single ended precast cable、Welding slag resistant PUR material、Yellow sheath、64T561-XXX

Ordering code: 64T561-XXX
Series: FCC M425-0000-2A-006-PW2534-XXX
  • Note: xxx = cable length, can be customized according to needs when ordering, cable length in 0.5m increments,  for example: 005=0.5m, 010=1m, 015=1.5m
Inquiry

Related recommendations

  • Function Parameter
  • Resource Download
  • Related Video

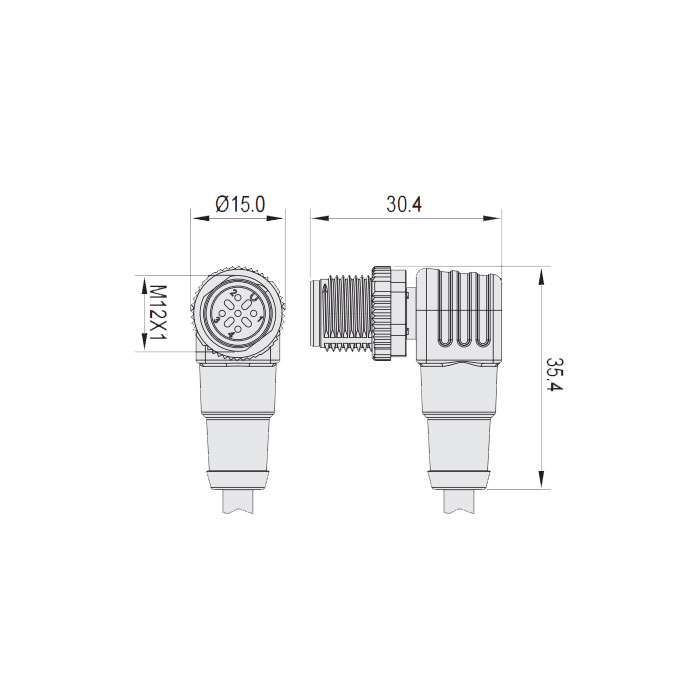

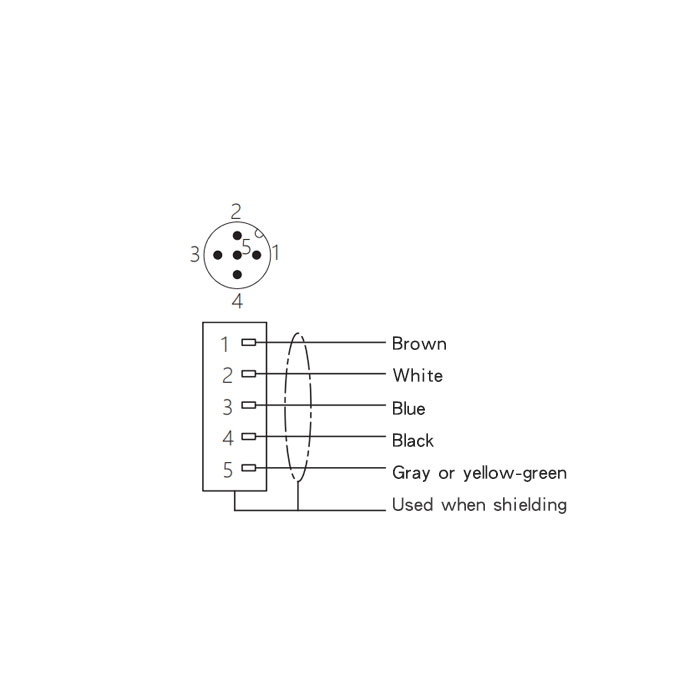

TypeM12 right angle male、5 Pin、A-coded
Maximum supply voltage AC UB125 V
Maximum supply voltage DC UB125 V
Maximum current4A
CableMolding
Number of conductors x conductor cross-section5×0.34 mm²
Cable color/materialYellow / PUR (Flexible cable)
Degree of protection as per IEC 60529IP 67
Ambient temperature Ta-25...+105 °C
