| Industrial Ethernet | PROFINET、Ethernet/IP、CC-Link IEF Basic、Modbus TCP、EtherCAT |
| Type | 16×DI/DO, configurable |
| IIoT | - |
| Rated working voltage | 18...30 V DC |
| Module current consumption | ≤ 150 mA（24VDC） |
| Ring network redundancy function | MRP |
| Module status indicator | Yes |
| Network status indicator | Yes |
| Port status indicator | Red, yellow |
| Connection: Fieldbus | M12，D-coded，female |
| Connection: Power supply | M12，L-coded，male/female |
| Connection: I/O port | M12，A-coded，female |
| Number of I/O ports | 8 |
| Input number | Maximum 16 PNP inputs |
| Output number | Maximum 16 PNP outputs |
| Input/output configurable | Yes |
| Maximum load current，sensor/channel | 1A |
| Maximum output load current | 2A |
| Port diagnosis indication light(overloa) | Red LED indication light |
| Total current UA | ≤ 16A |
| Total current US | ≤ 16A |
| Degree of protection as per IEC 60529 | IP67（In correct connection） |
| Certification/Standard Compliance | CE, cULus |
| Working temperature | -25...+70℃ |
| Storage temperature | -40...+85℃ |
| Installation method | 2 mounting holes |

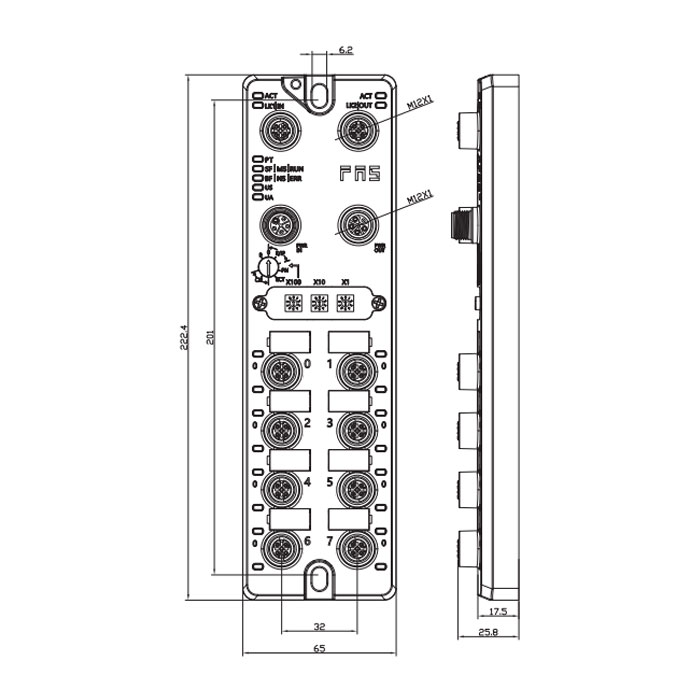

| Dimension (L*W*H) | 222.4×65×25.8 mm |
| Housing material | Nickel-plated Gd-Zn alloy |
